Product Introduction

Performance

Motor Design
International Electro-technical Commission-IEC34
CE UL 3C Certification
Structure

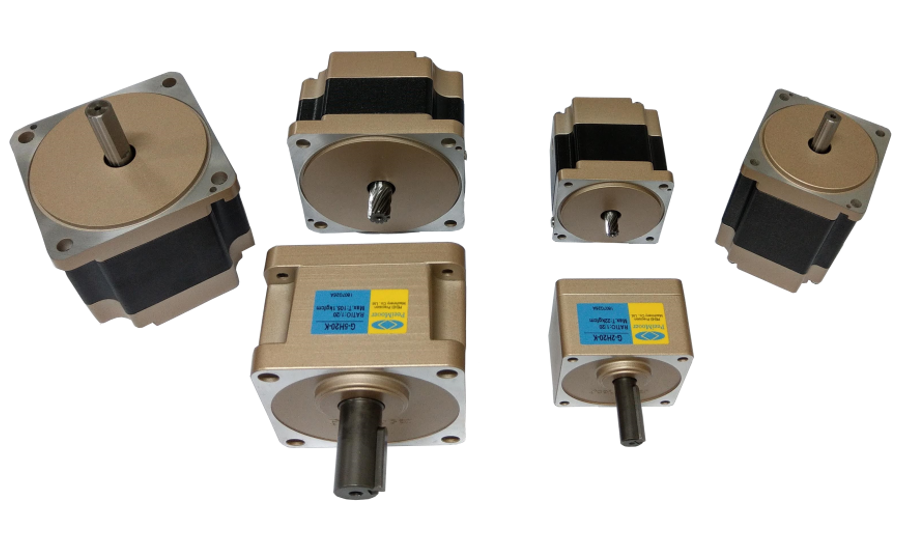

Beautiful champagne Series
Patented thermal modeling structure
Large space in terminal box, cable entry can be from eiter side
Performance
Higher Efficiency,Lower Noise,Higher Reliability,Choice of diversification
Gearbox
Processed by Japanese CNC hobbing machine。
Using CNC tooth type detector TTI-120E detection。
Proportional number, Low noise, Good transmission。
Rugged design of the gearbox for durability。


Technical Information

●Motor

●rushless DC moto

Performance

Good operating performance
high sensitivity
High reliability
Simple structure and superior economic performance
Connection and cutting action
Keep braking
Variable speed, forward and reverse, high frequency operation, inching, buffer starting, braking



Technical Information

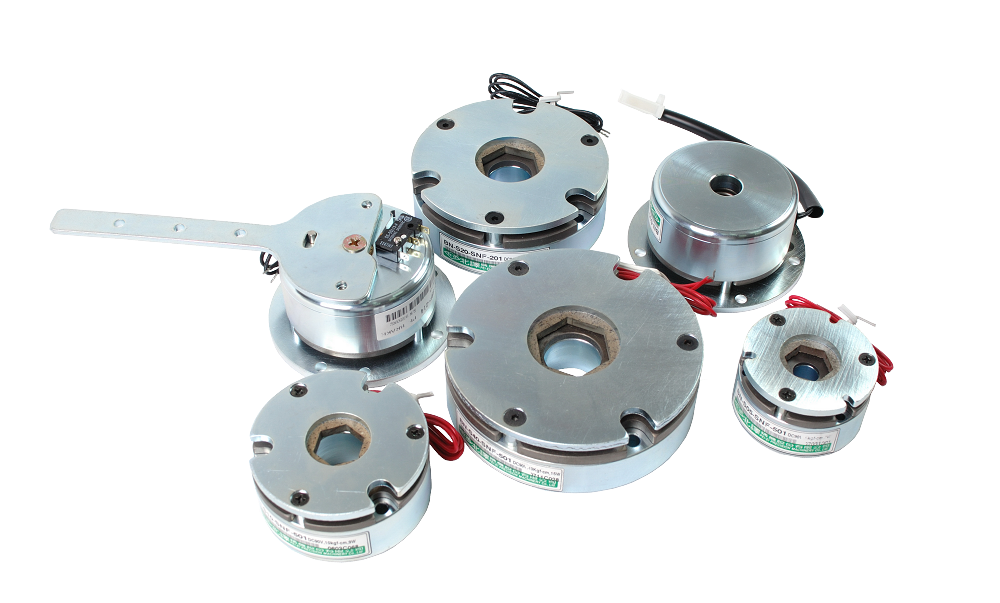

●CLUCTH & BRAKE


Detailed

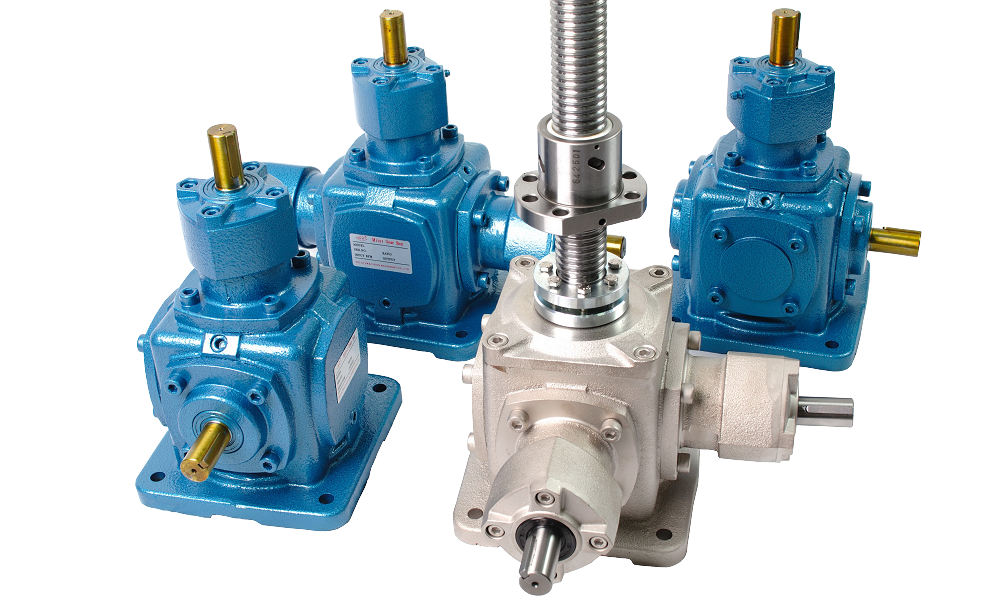

Miter Gear Box

<Catalogue Download>

Performance



For power 90 degree steering or power extension

The synchronous lifting system requires only a single driving force to achieve the power required by the elevator.

The axis direction can select the up, down, left and right multi-motion changes, high efficiency, high transmission capacity, low noise, low vibration.

Housing: High rigidity FC-20 cast iron casting

Gear: chrome molybdenum steel spiral bevel gear surface has been hardened and ground

Spindle: High-precision grinding capacity of carbon steel after high-precision grinding◇Bearing: Roller bearing with heavy load capacity

Oil seal: oil seal, inter-collection dustproof and oil leakage resistance of double wind lip

Technical Information

 ●Miter Gear Box
